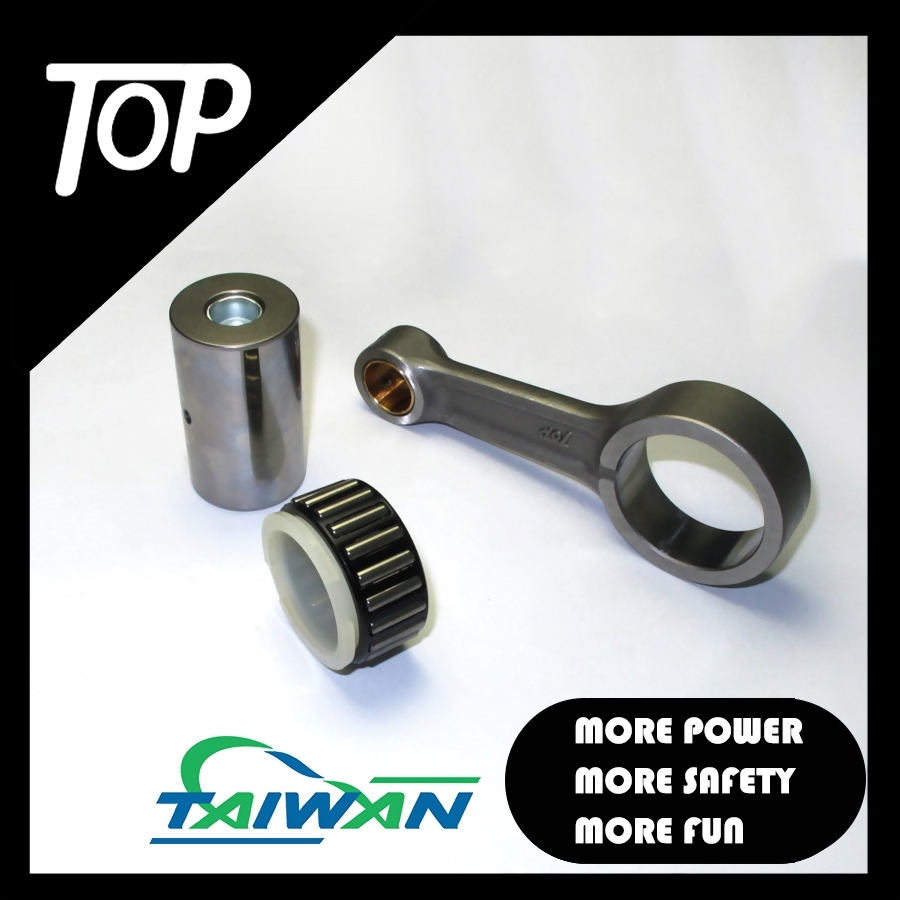

For Yamaha 2003-2013 YZ 250F

Application:
Yamaha 2003-2013 YZ 250F
Yamaha 2003-2013 WR 250F

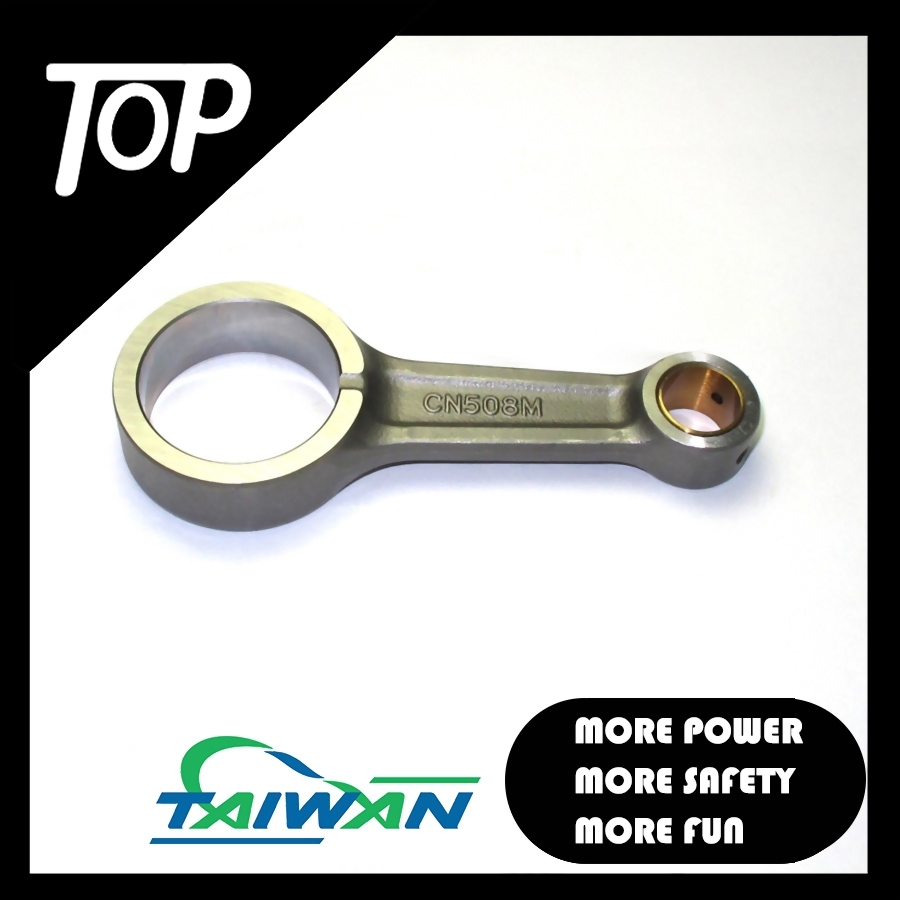

Model : CN508M

Application:

Yamaha 2003-2013 YZ 250F

Yamaha 2003-2013 WR 250F


Big-end Width (mm): 18

Small-end Width (mm): 15

Big-end Bore (mm): 40

Small-end Bore (mm): 16

Center-to-center (mm): 93.5

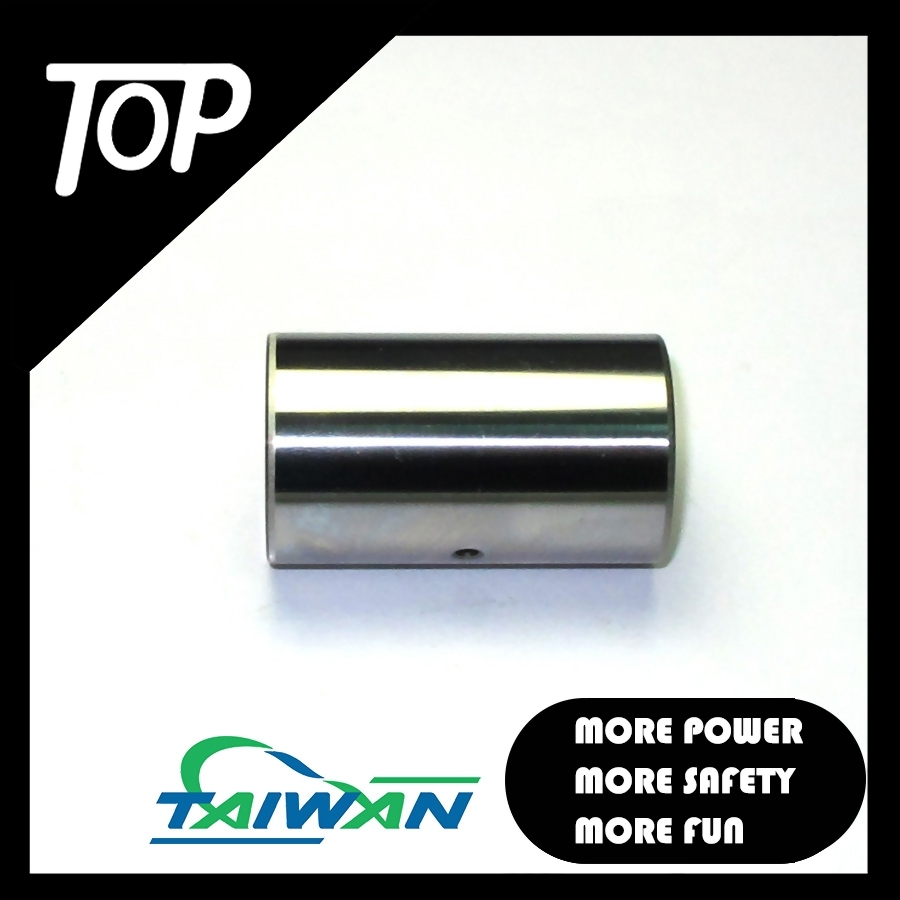

Pin Diameter (mm): 32

Pin Length (mm): 54.8

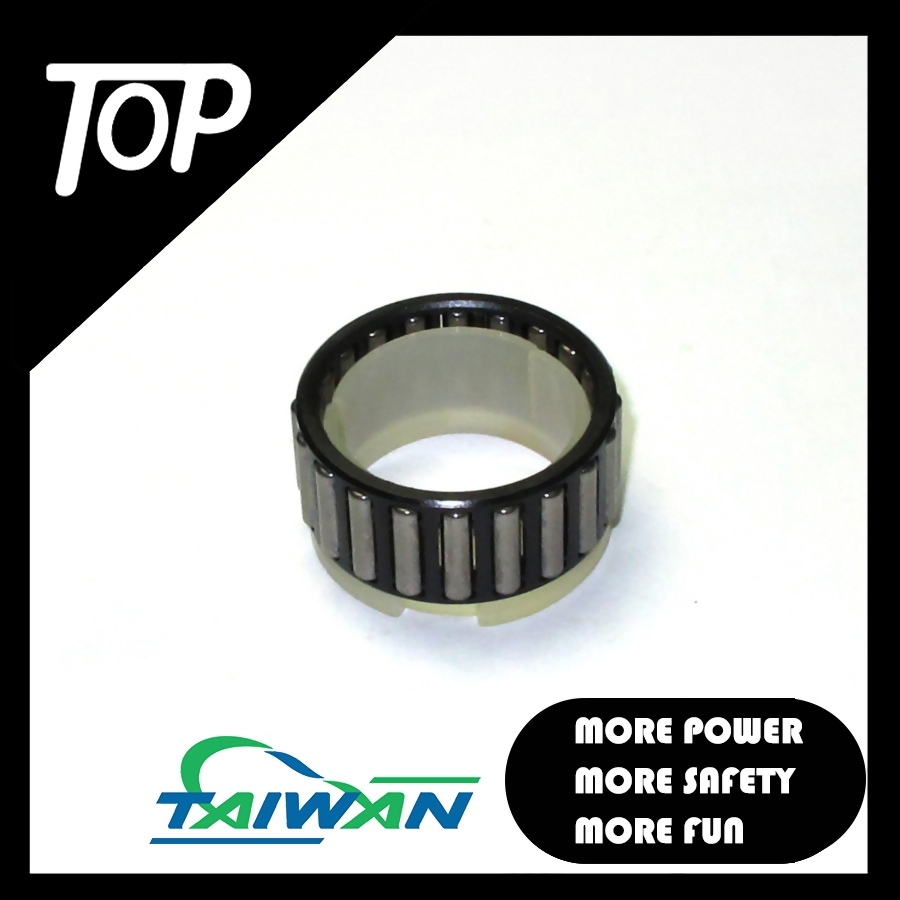

Big-end Bearing (mm): 32*40*18

Small-end Bearing (mm): Bush

Washer Thickness (mm): N/A
