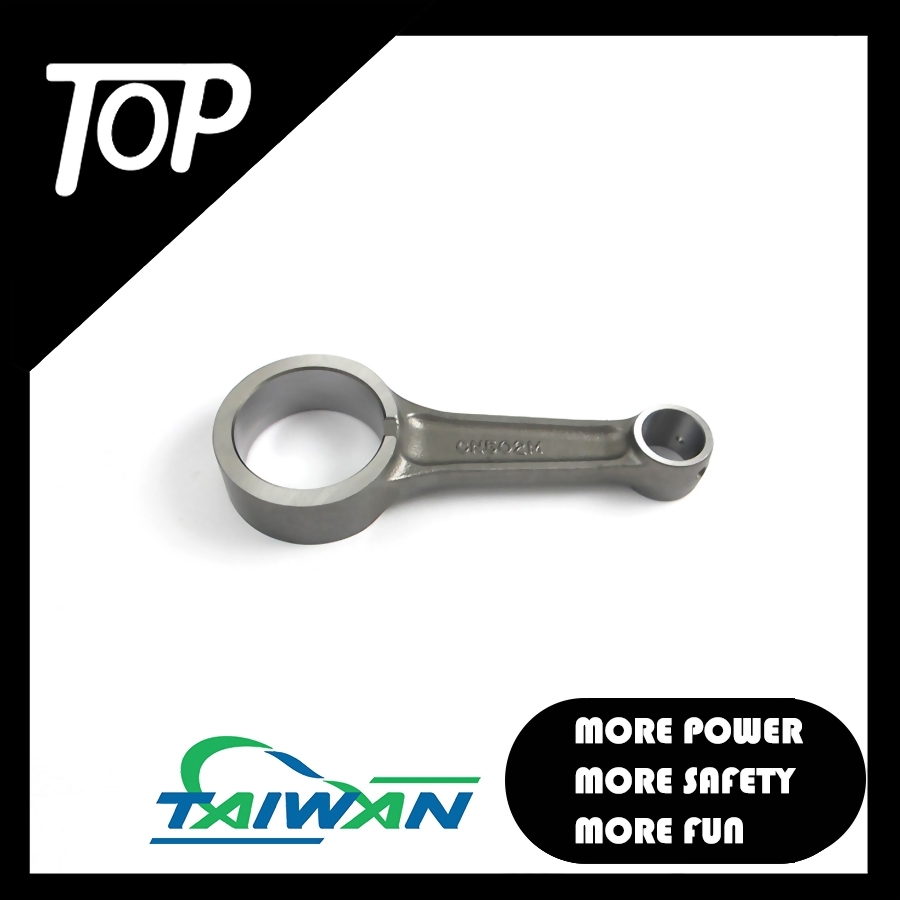

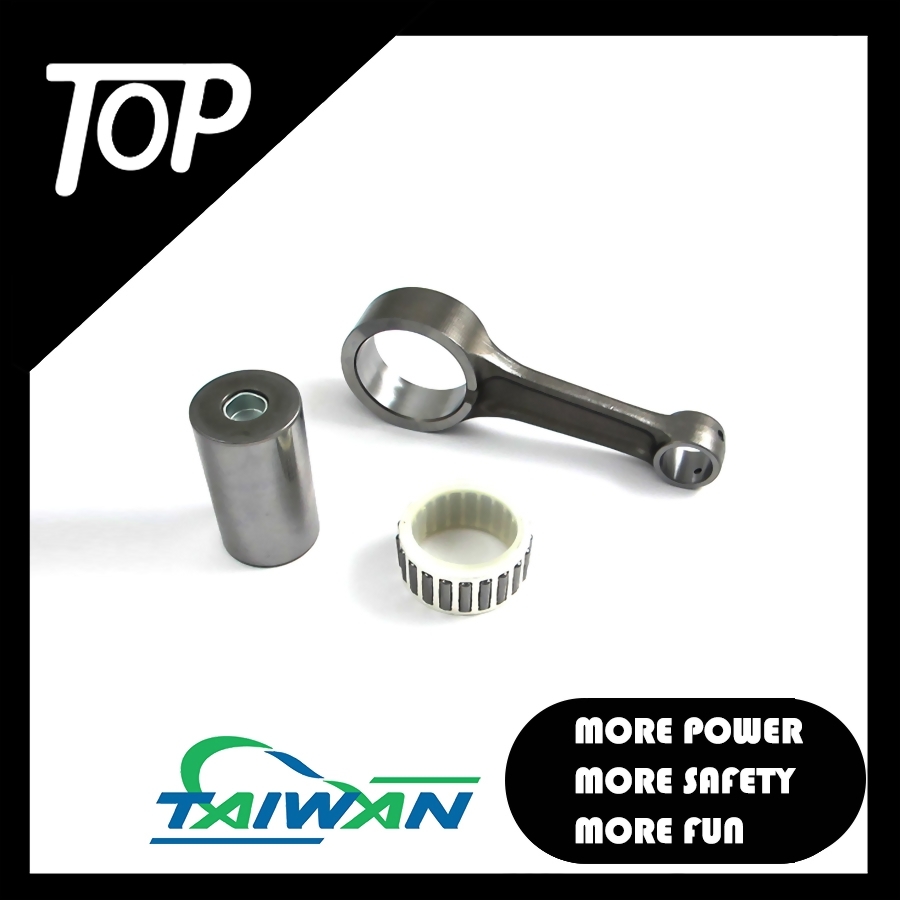

The CN502M connecting rod kit is for the famous Yamaha YZ450F engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.
Application:
Yamaha 2003-2005 YZ 450F
Yamaha 2004-2006 WR 450F
Big-end Width (mm): 20
Small-end Width (mm): 18
Big-end Bore (mm): 42
Small-end Bore (mm): 18
Center-to-center (mm): 103.5

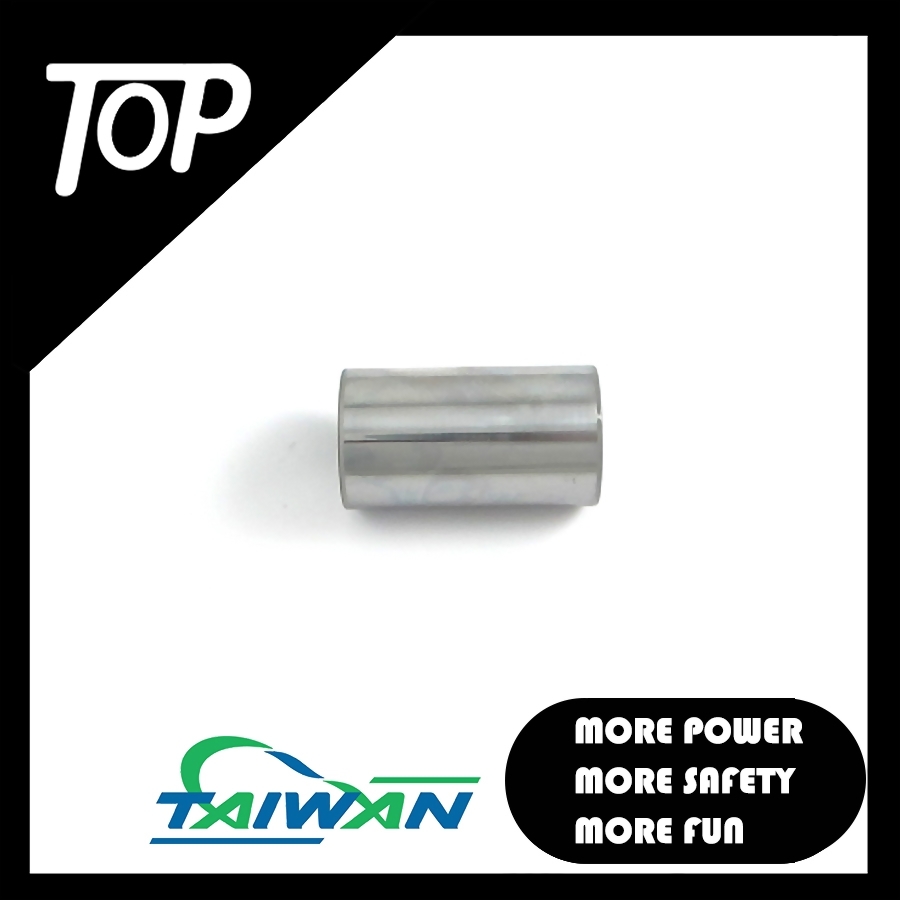

Pin Diameter (mm): 34
Pin Length (mm): 60.8

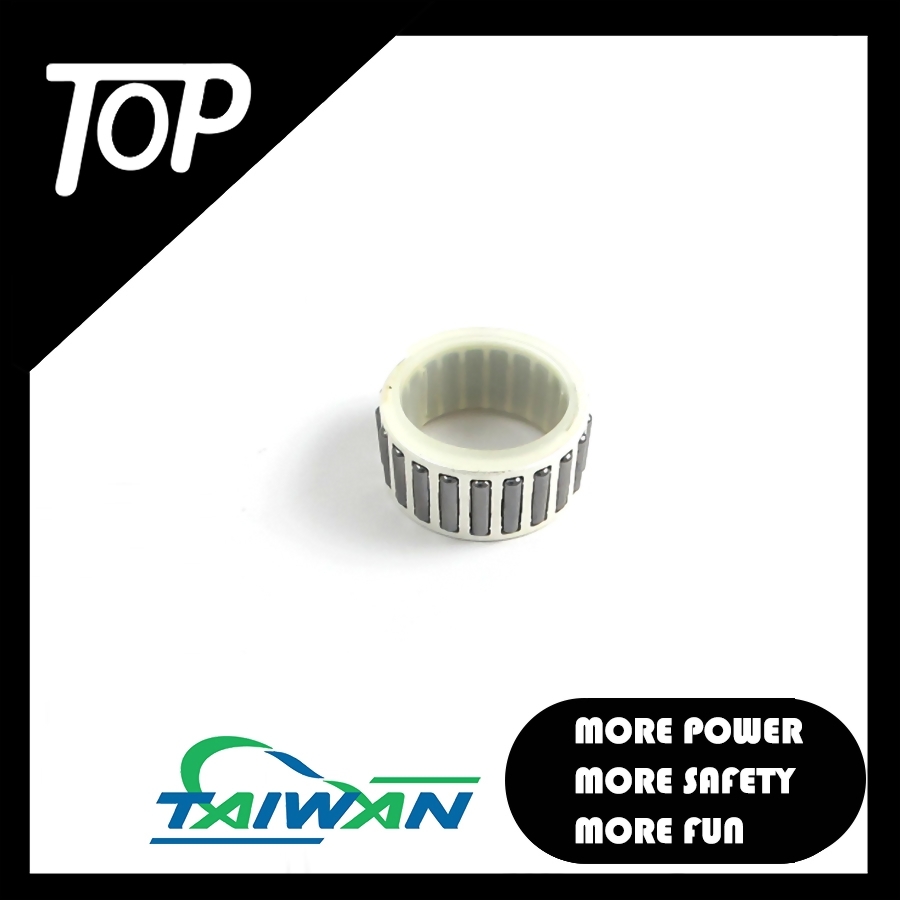

Big-end Bearing (mm): 34*42*20
Small-end Bearing (mm): Bush
Washer Thickness (mm): N/A
