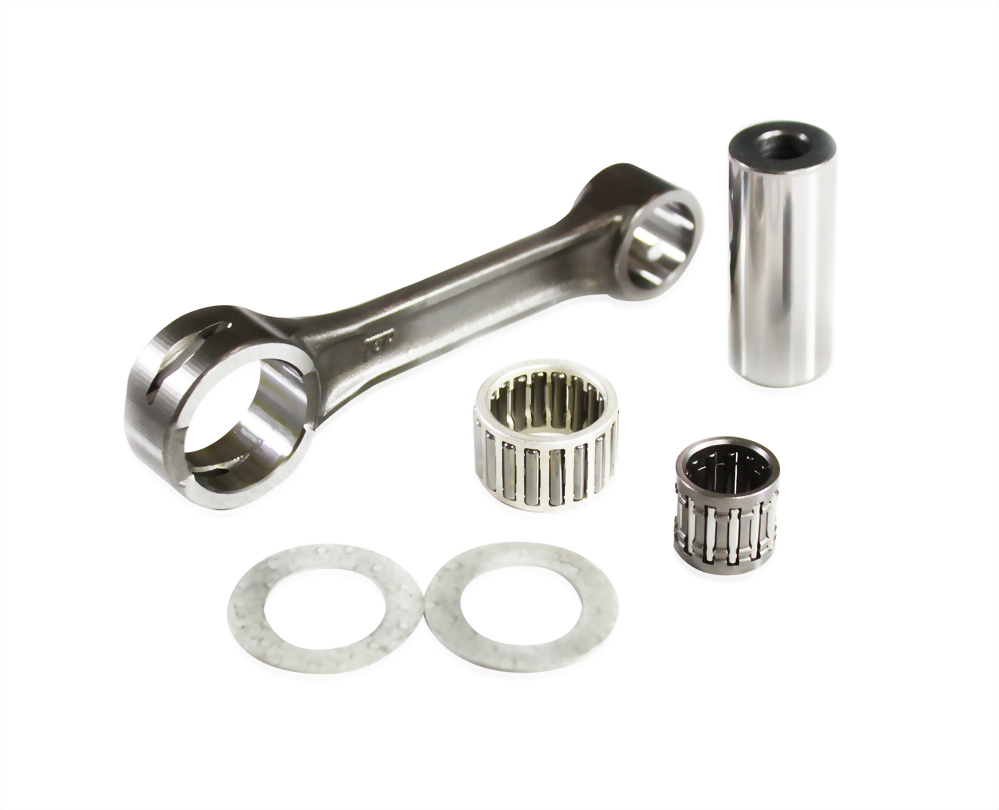

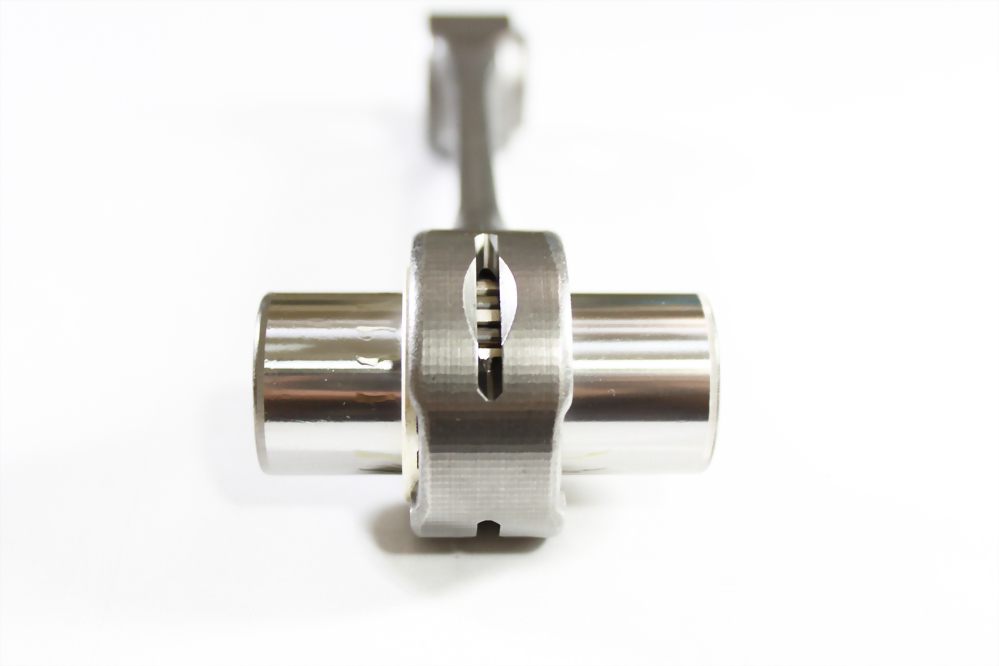

• Connecting rod kit for Yamaha YZ 250

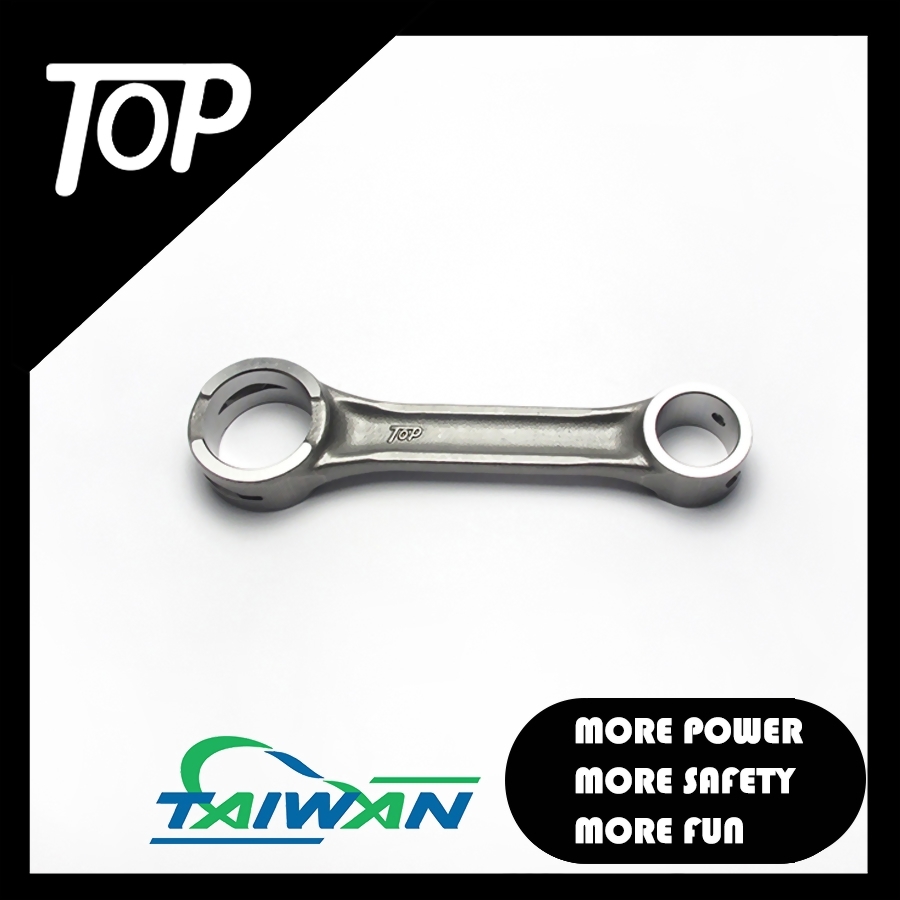

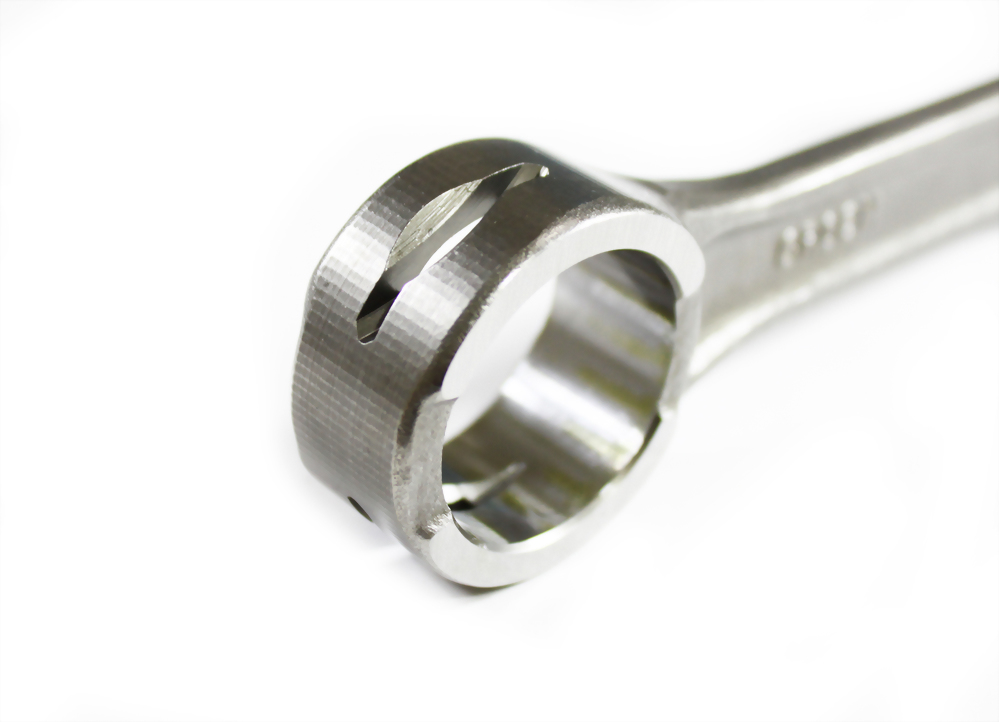

  • Connecting rod for Yamaha YZ 250

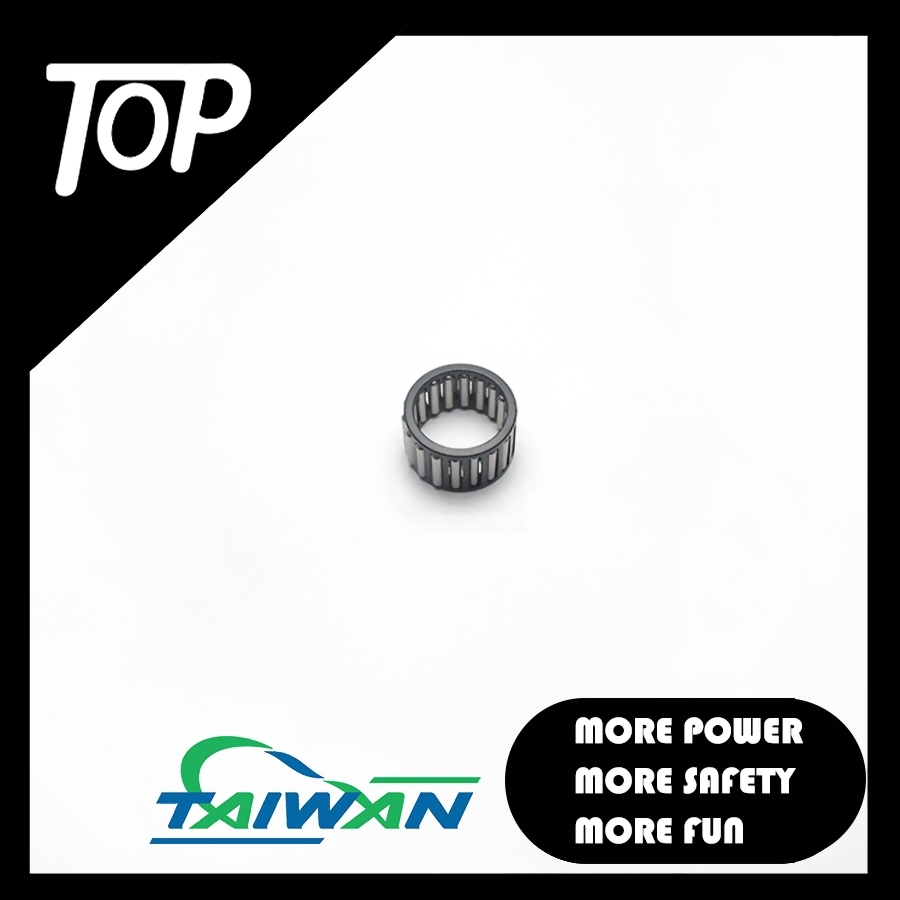

  • big end bearing for Yamaha YZ 250

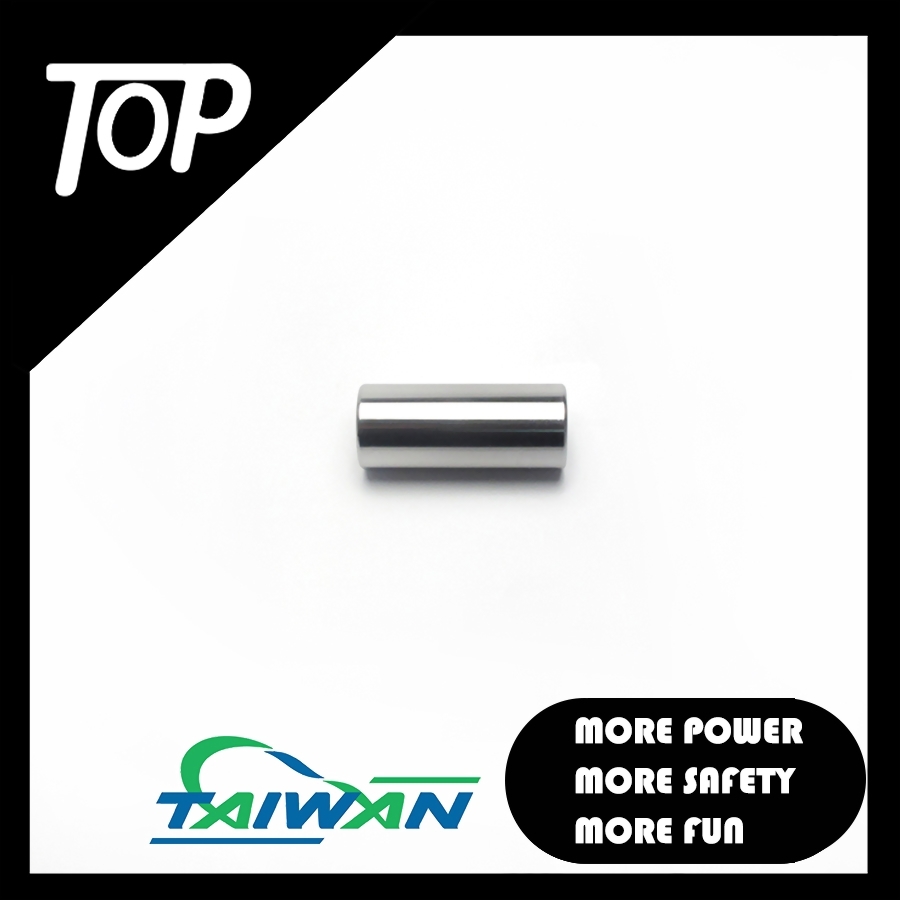

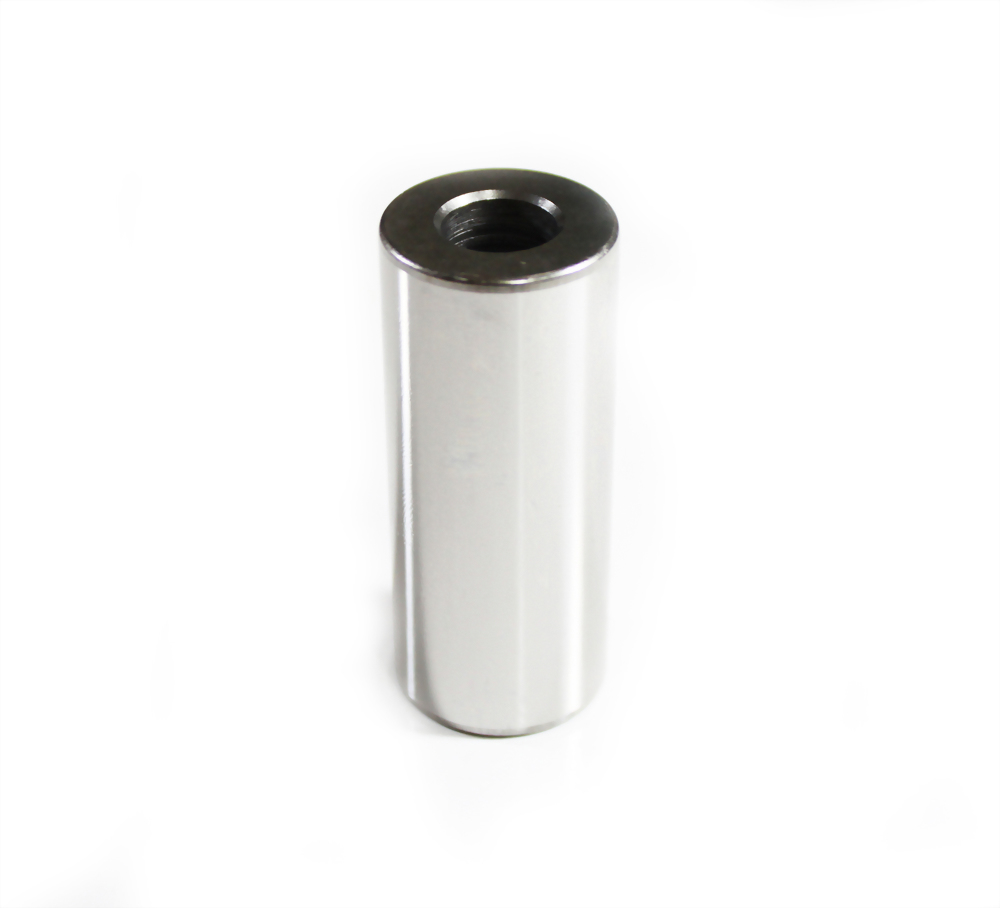

  • crank pin for Yamaha YZ 250

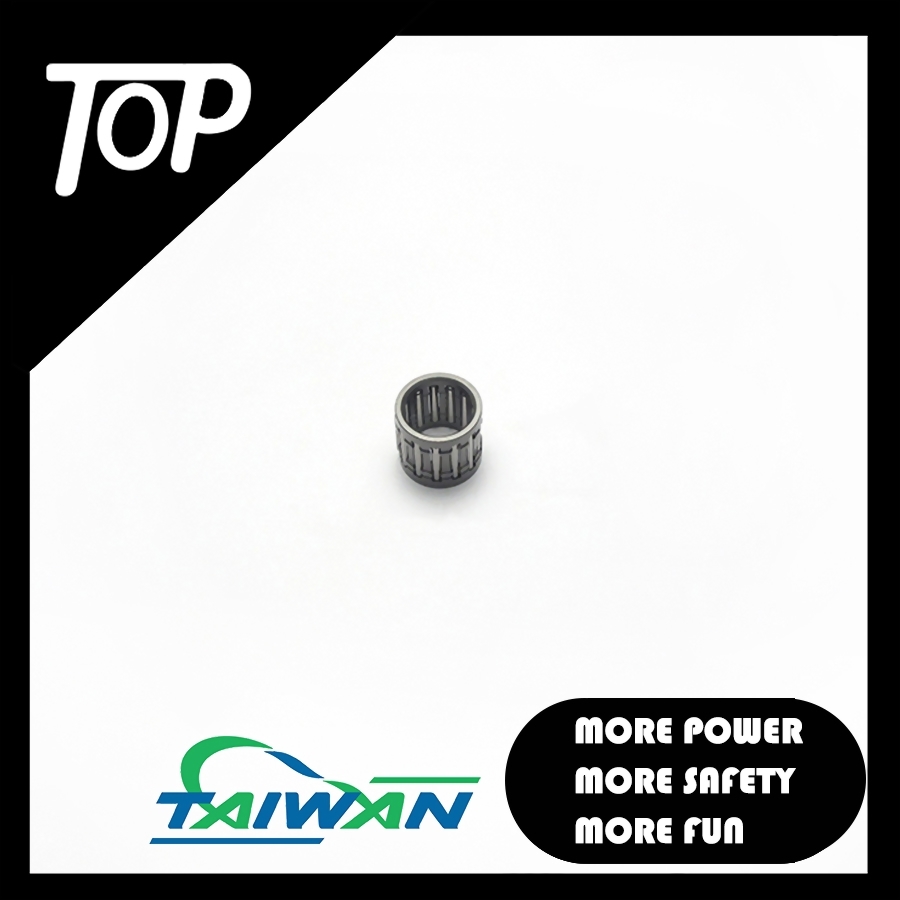

  • small end bearing for Yamaha YZ 250

For Yamaha 1990-1998 YZ 250

Application:
Yamaha 1990-1998 YZ 250
Yamaha 1991-1997 WR 250

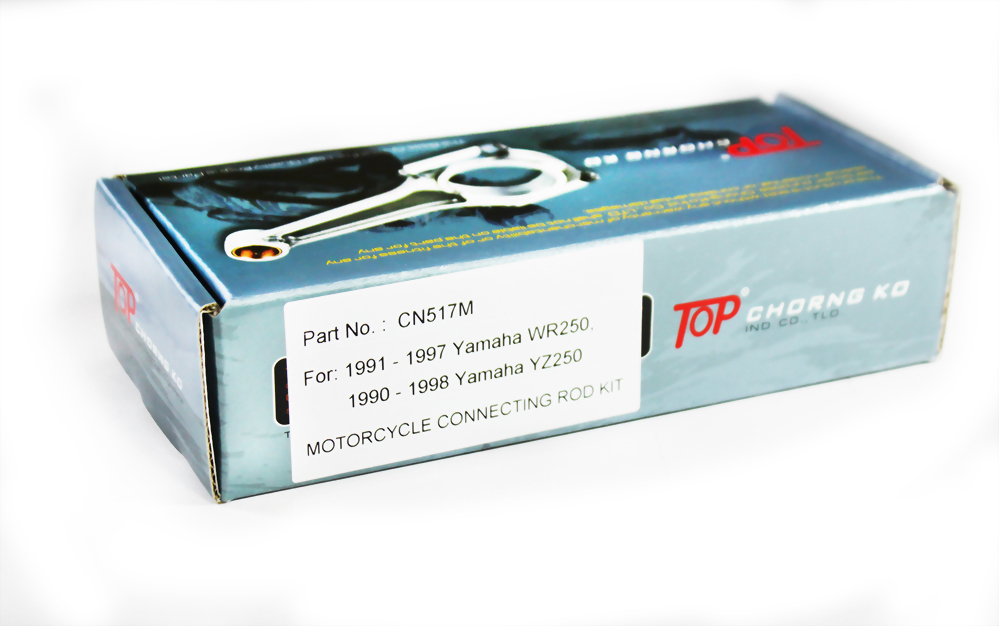

Model : CN517M

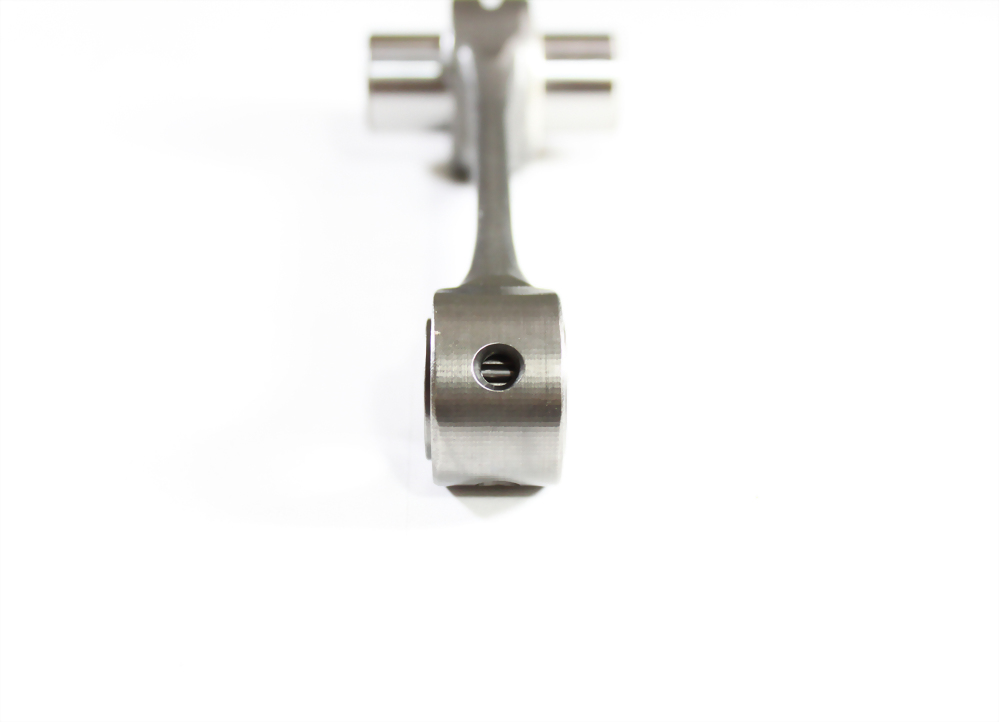

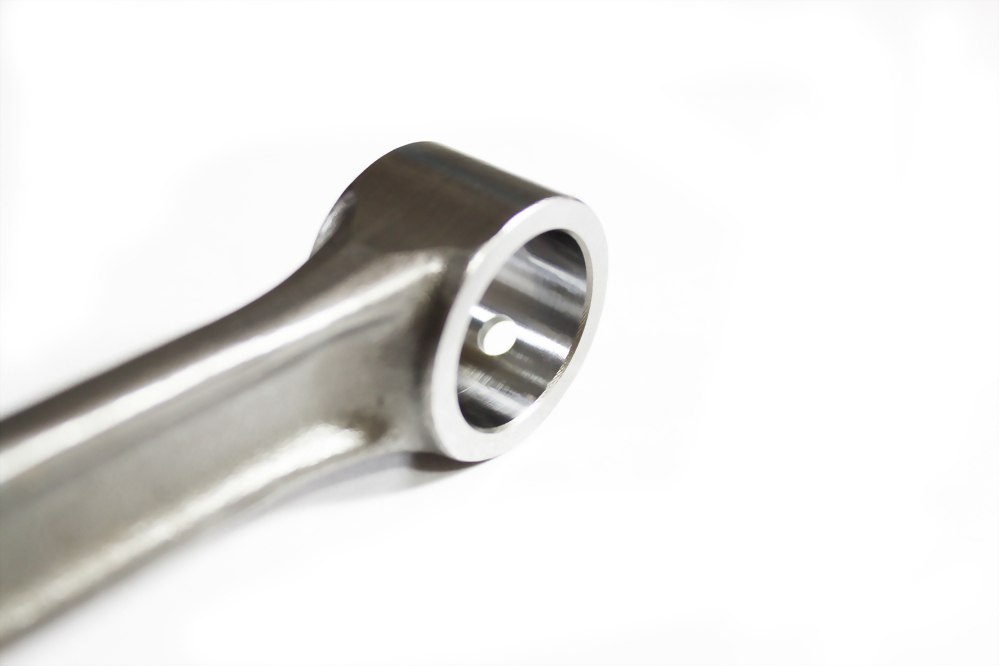

The CN517M connecting rod kit is for the famous Yamaha YZ250 / WR250 engine. We apply nickel-contained chromoly steel, a higher strength material, for our con-rods. The rod can bear higher loading and higher RPM environment.


Application:

Yamaha 1990-1998 YZ 250

Yamaha 1991-1997 WR 250


Big-end Width (mm): 19.9

Small-end Width (mm): 19.9

Big-end Bore (mm): 32

Small-end Bore (mm): 23

Center-to-center (mm): 125

Pin Diameter (mm): 25

Pin Length (mm): 59.9

Big-end Bearing (mm): 25*32*20

Small-end Bearing (mm): 18*23*22

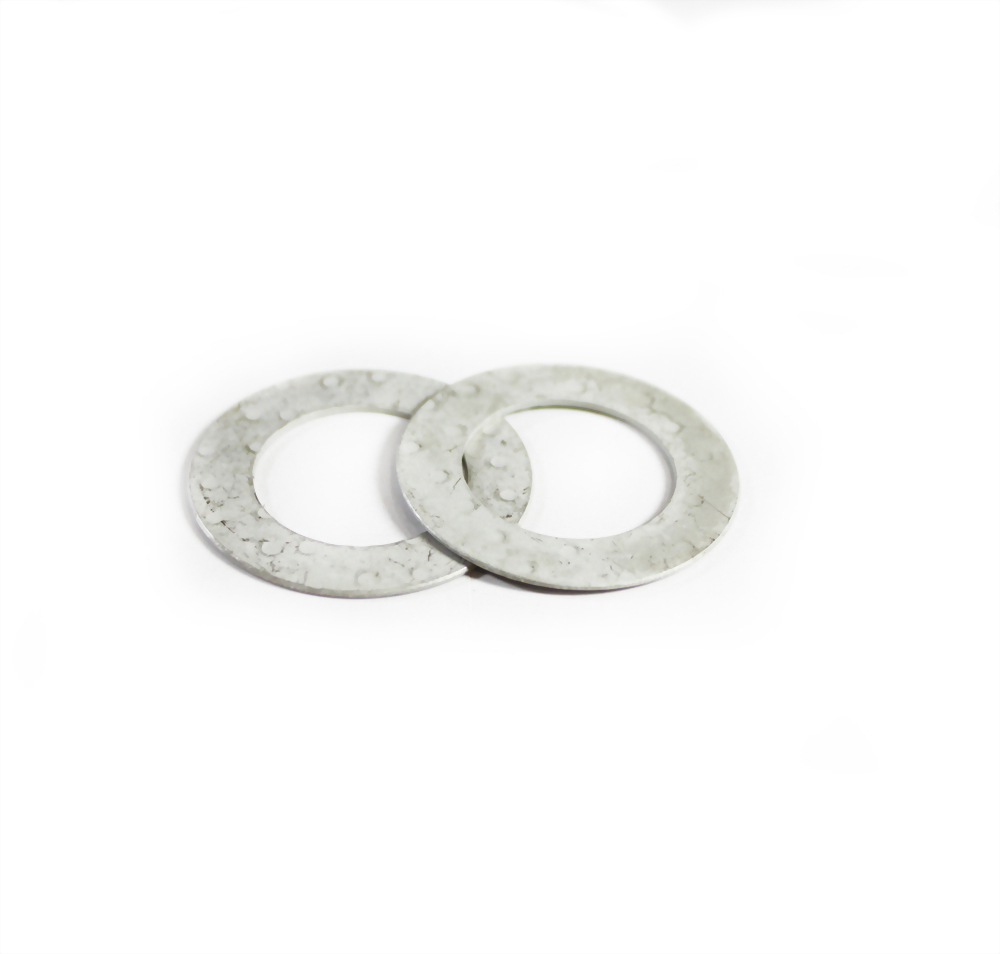

Washer Thickness (mm): 1.0
